Products Description

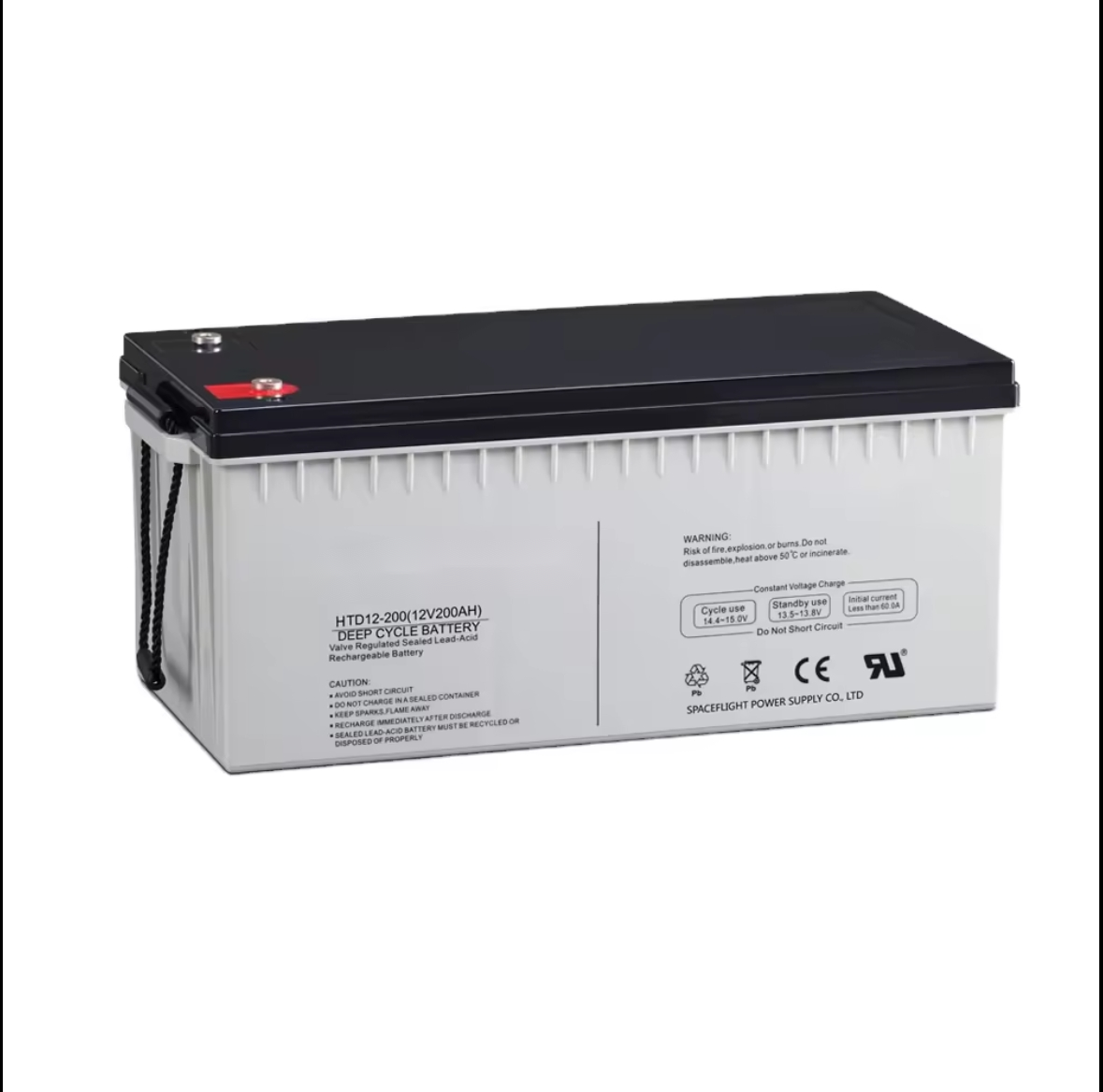

Solar gel battery, rechargeable deep cycle battery, maintenance-Free !
Specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. Suitable for solar energy systems, marine and RV etc.
Tags: solar battery gel battery energy storage
Technical parameter
| Model | 12V 70AH | 12V 100AH | 12V 150AH | 12V 200AH | 12V 250AH |
| Cells Per Unit | 6 | ||||
| Voltage Per Unit | 12 | ||||
| Capacity | 70ah | 100ah | 150ah | 200ah | 250ah |
| Weight | 20Kg | 31.5Kg | 42.5Kg | 60.0Kg | 70.1Kg |
| Max. Discharge Current | 700A(5 sec) | 700A(5 sec) | 700A(5 sec) | 700A(5 sec) | 700A(5 sec) |
Max Charging Current Limit | 23.5A | 30A | 45A | 60A | 75A |
Operating Temper-ature Range | Discharge:-20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃ | ||||
Normal Operate Temperature Range | 25℃±5℃ | ||||
| Dimension (mm) | 260x169x210 | 330x171x218 | 484x241x170 | 522x219x240 | 520x268x220 |
Maintenance & Cautions:
Avoid battery over discharge,especially battery series connection use.
Charged with recommend voltage,ensure battery can be full recharged. In general,recharge capacity should be 1.1-1.15 times discharge capacity.
There are a number of factors that will affect the length of cyclic service. The most significant are depth of discharge, ambient temperature, discharge rate, and the manner in which the battery is recharged. Generally speaking,the most important factors is depth of discharge.
Special notes:
The products should be recharged if still not being used after 4 months since the manufacturing date. Or the battery will be deteriorated or spoiled.
